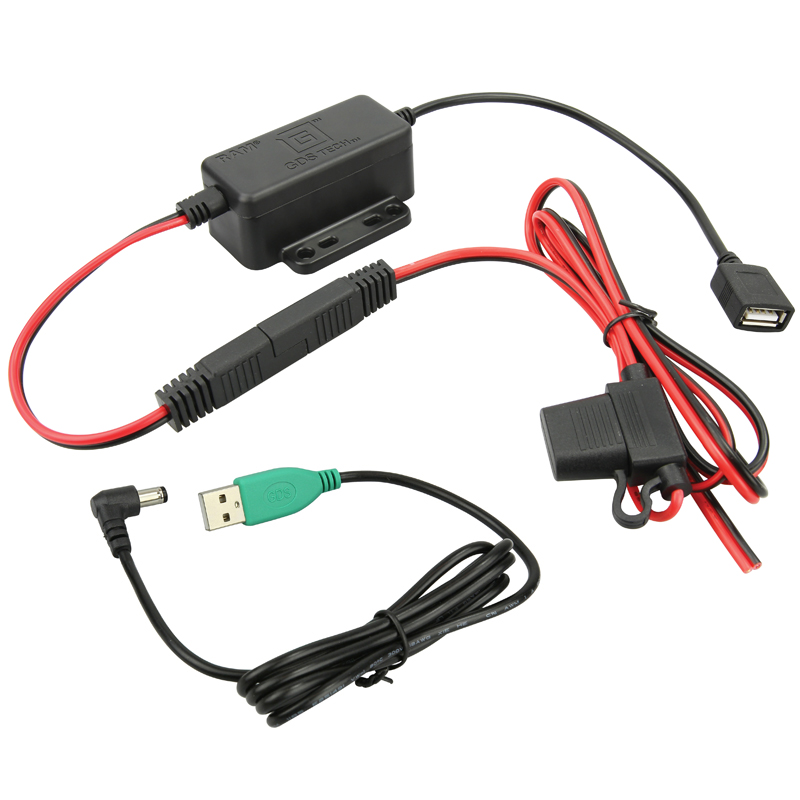

GDS® Modular 8-40V Hardwire Charger with 90-Degree DC Cable

Name: GDS® Modular 8-40V Hardwire Charger with 90-Degree DC Cable
SKU: RAM-GDS-CHARGE-V7-M55U
Price: 419 SEK
Availability: BackOrder

419 kr

The GDS Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible Devices: Any 5V device with a current requirement of 2.5A or less

Begränsat antal!

Artikelnr: RAM-GDS-CHARGE-V7-M55U Kategori: Produkter

Beskrivning

Beskrivning

Mer information

Packaging Type	The GDS Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable.
Solution Type	Components
Input Range	8V – 40V DC
Product Line	GDS Tech GDS Charge
Output Voltage	5VDC
Output Current	2.5A max
Connector Type	90° DC Plug
Input Cable Length	1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length	.2 Meter
Operating Temperature	-10°C to +70°C
Storage Temperature	-40°C to +70°C
Compliance	Moisture Resistant, Over Voltage Protection, Reverse Polarity Protection, RoHS Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Short Circuit Protection, WEEE Compliance
Certifications	CE Certification, e-Mark Certification, FCC Certification, RCM Certification
